1M OM3 12 Cores MTP MPO Patch Cord

Product Categories
Shenzhen Knofc Communication Co., Ltd.
Contact Now

1M OM3 12 Cores MTP MPO Patch Cord

  • 1
  • 2

Brand Name : KNOFC or OEM

Model Number : MPO-MPO 12F OM3

Certification : CE/ISO9001

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Packaging Details : bag or customized

Fiber count : 12 Cores

Fiber type : SM/OM1/OM2/OM3/OM4/OM5

Quality : 100% pass test

Application : FTTX

Jacket material : LSZH, PVC, OFNR, OFNP

Fiber brand : YOFC/ Fiber home/ Corning/ KNOFC

Cable length : 1M or Customized

Operating Temperature : -30°C to+60°C

Contact Now

MPO MTP Fiber Optic Patch Cord OM3 8 12 24 Cores

Description:

MPO/MTP patch cord are designed to high density multi fibers solutions,fit for different installation environment and easy to in-stall between the trunk line,data centers and buildings.Our patch cord are 100% factory tested and can meet your special requirements.All the MPO/MTP connects comply with Telcordia GR-1435-Core Compliant.

Connector Requirements:

Performance level Standard Elite
Connector Mode Endface IL(max)(dB) RL(max)(dB) IL(max)(dB) RL(max)(dB)
MPO/MTP SM PC ≤0.75 ≥45 ≤0.35 ≥50
MPO/MTP MM PC ≤0.70 ≥25 ≤0.35 ≥25

Features:

  • Supports 40G and 100G network applications.
  • Jacket material: LSZH, OFNR, OFNP available.
  • Jacket color: Aqua,Yellow or customize.
  • High performance in IL&RL 100% pre-terminated tested.
  • Supports up to 4F,8F,12F, 24F, 48F, 72F, 96F, 144F, customized products are available.

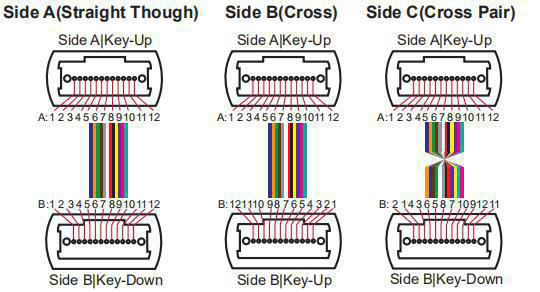

Polarization Structure:

1M OM3 12 Cores MTP MPO Patch Cord

Application:

  • Active dvice termination
  • Telecommunication networks
  • Metro
  • Local Area Networks(LANs)
  • Data Processing networks
  • Test Equipment
  • Premise installations
  • Wide Area Networks(WANs)

1M OM3 12 Cores MTP MPO Patch Cord

1M OM3 12 Cores MTP MPO Patch Cord
