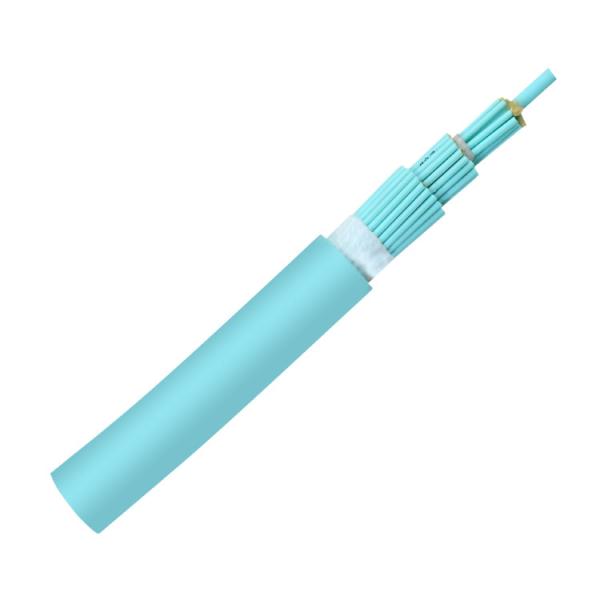

Breakout Om3 Multimode Fiber Cable Indoor Fiber Cable

  • 1
  • 2

Brand Name : KNOFC or OEM

Model Number : GJBFJV

Certification : CE/ISO9001

Place of Origin : China

MOQ : 1km

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 200km/week

Packaging Details : wooden drum

Fiber type : OM2 50/125

Fiber count : 2-48 Core

Jacket material : LSZH/PVC

Application : Indoor cabling and distribution

Fiber brand : YOFC / Fiberhome / Corning / KNOFC

Life expectancy : more than 30 years

Operating Temperature : -40°C to+70°C

Contact Now

OM3 Breakout Fiber Cable Multimode Indoor Optical Cable

Description:

GJBFJV Multi-core round tight buffered distribution indoor fiber optic cable with good mechanical and environmental characteristics. Flame retardant characteristic meet the rquirements of relevant standards. The mechanical and physical characteristics of the outer jacket meet the requirement of relevant standards. Soft, flexible and easy to do stripping, splicing and cabling.

Features:

  • Flexible, flame-retardant & color coded outer jacket.
  • Non-unitized designs provide space savings and cost advantages.
  • Work as pigtails and patch cords.
  • Optical communication cables for inside plant installations.
  • Sitable for indoor use, communication equipment.

Application:

  • Indoor cabling and distribution.
  • Interconnection of fiber optic equipments, especially ODF.
  • Used in patch cords and pigtails

Technical parameters:

Cable type Diameter(mm) Weight
(kg/km)		 Tensile strength
Long/short term
(N)		 Bending radius
Dynamic/static
(mm)		 Storage temperature
( ℃ )
GJPFJV-4C 6.0 26.2 1000/3000 20D/10D -20~+70
GJPFJV-6C 8.0 30.0 1000/3000 20D/10D -20~+70
GJPFJV-8C 9.0 36.0 1000/3000 20D/10D -20~+70
GJPFJV-12C 10.0 41.5 1000/3000 20D/10D -20~+70

Main mechanical & environmental performance test:

Item Test Method Acceptance Condition
Tensile Strength
IEC 794-1-2-E1		 - Load: Short term tension
- Length of cable: about 50m		 - Fiber strain £ 0.15%
- Loss change £ 0.1 dB @1550 nm
- No fiber break and no sheath damage
Crush Test
IEC 60794-1-2-E3		 - Load: Short term crush
- Load time: 1min		 - Loss change £ 0.05dB@1550nm
- No fiber break and no sheath damage.
Impact Test
IEC 60794-1-2-E4		 - Points of impact: 3
- Times of per point: 1
- Impact energy: 5J		 - Loss change £ 0.1dB@1550nm
- No fiber break and no sheath damage
Temperature Cycling Test
YD/T901-2001-4.4.4.1		 - Temperature step:
+20℃→-40℃→+70℃ →+20℃
- Time per each step: 12 hrs
- Number of cycle: 2		 - Loss change £ 0.05 dB/km@1550 nm
- No fiber break and no sheath damage.

Breakout Om3 Multimode Fiber Cable Indoor Fiber Cable


Product Tags:

Breakout Om3 Multimode Fiber Cable



OEM Multimode Indoor Fiber Cable



Breakout Om3 Indoor Fiber Cable


Quality Breakout Om3 Multimode Fiber Cable Indoor Fiber Cable wholesale

Breakout Om3 Multimode Fiber Cable Indoor Fiber Cable Images
