SM MM Indoor GJFJV Simplex Multimode Fiber Optic Cable

  • 1
  • 2

Brand Name : KNOFC

Model Number : GJFJV 1 Core

Certification : ISO9001/CE

Place of Origin : China

MOQ : 1km

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 600000M/Week

Delivery Time : 8-10 working days

Packaging Details : Wooden drum

Fiber type : SM / MM

Fiber brand : YOFC / Fiberhome / Corning

Fiber count : 1 Core

Cable OD : 2.0 mm / 3.0 mm

Protect layer : Kevlar yarn

Jacket material : PVC / LSZH

Life expectancy : more than 30 years

Operating Temperature : -40°C to+70°C

Contact Now

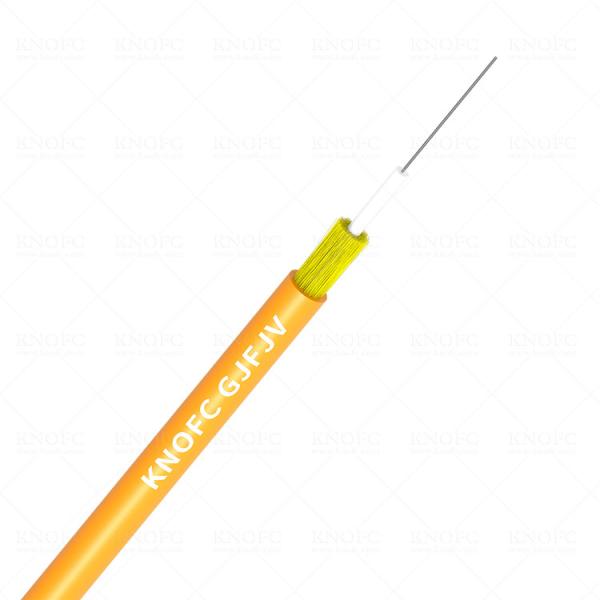

GJFJV Simplex Indoor Fiber Optic Cable Single Mode Multimode

Description:

GJFJV Multi-Purpose Distribution cable use several 900um flame-retardant tight buffer fiber as optical communication medium, the tight buffer fiber wrapped with a layer of aramid yarn as strength member units, and the cable is completed with a PVC or LSZH(Low smoke, Zero halogen, Flame-retardant) jacket.

Technical Parameters:

Cable type Diameter (mm) Weight (kg/km) Tensile strength
Long/short term (N)		 Crush Resistance Long/Short Term(N/100mm) Bending radius
Dynamic/static (mm)		 Storage temperature ( ℃ )
GJFJV-1 2.0 4.5 80/150 300/1000 20D/10D -40~+70
GJFJV-1 3.0 7.5

Mechanical requirements and methods of fiber cable:

Tensile strength 10935N, conform to IEC 794-1-E1,While Fiber Strain≤0.33%
Crush 2200N/100mm, conform to IEC 794-1-E3
Impact Conform to IEC 794-1-E4
Repeated bending Conform to IEC 794-1-E6
Torsion Conform to IEC 794-1-E7
Flexing Conform to IEC 794-1-E8
Kink Conform to IEC 794-1-E10
Cable bend Conform to IEC 794-1-E11
Vibration Conform to IEC 794-1
Water penetration Conform to IEC 794-1-F5B
Abrasion Conform to IEC 794-1-E2
Temperature cycling test Conform to IEC 794-1-F1
Dielectric strength of outer jacket Conform to ITU-T Rec.K25

Features:

1. Good uniformity of the outer diameter of tight buffer fiber and excellent strippability.
2. Good performance of flame-retardant.
3. Low induced attenuation within the operating temperature range.
4. Excellent geometrical dimension of the fiber.

Application:

1. Components for various indoor cables.
2. Suitable for patch cords and pigtails.
3. Suitable for communication equipment served.
